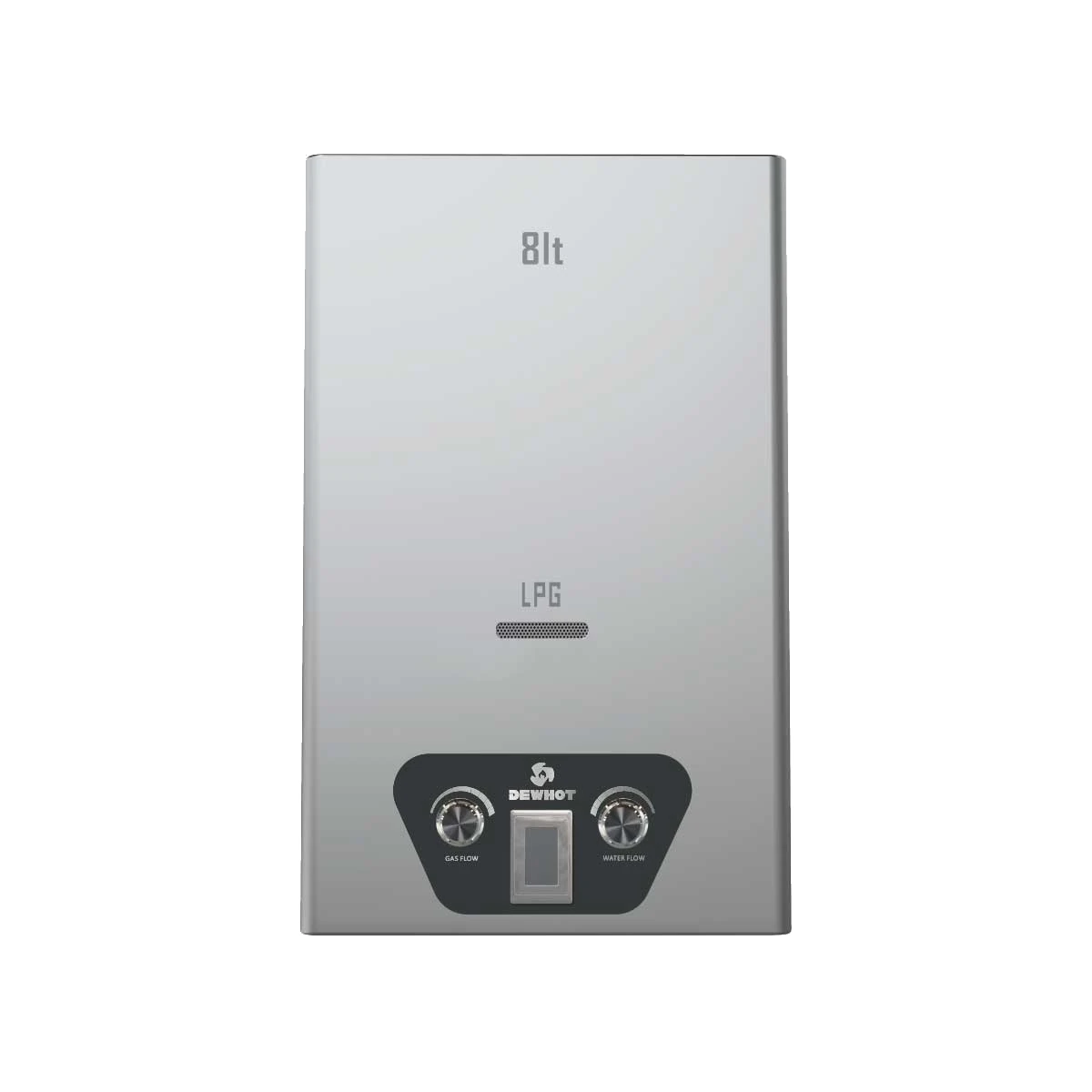

The Diaphragm Activated 8L Gas Geyser provides a reliable source of hot water with relatively low maintenance. This battery-ignited gas water heater can heat up to 8 litres of hot water per minute through a single outlet.
TYPE D install outdoors with a medium cover
Simple and reliable
Built with basic time-tested technology understood by most installers, diaphragm activated geysers provide a reliable hot water source with minimal maintenance needs.
Energy saving
Enjoy maximised energy savings with on-demand heating, only heating water as you need it.
Double safety
Flame shut-off and pressure relief protection for ultimate peace of mind.
Outdoor longevity
Install outdoors with a medium-size weather box cover to extend the lifespan and retain the warranty.
Features:
- Diaphragm activated
- Requires no electricity – flame ignition and geyser functions are battery operated
- 84% energy efficiency
- Neat and compact Stainless steel cover
- LCD temperature display
- Flame failure safety device (FFD)
- Pressure relief protection (to function effectively,
the valve must be set to your water pressure)
Technical Specifications:
- Max gas pressure 2.8 kPa
- Max gas consumption 1.24 kg / hour
- Rated Input 16 Kw
- Water pressure 50-500 kPa
- Water Output (min/max) 4L – 8L / min
- Unit weight 6.5 Kg
- Unit size 580 x 310 x 195 mm
- Packaged weight 7.5 kg
- Packaged size 650 x 390 x 215 mm
- Gas Type LPG or NG
For Installers:
- Cylinder vaporisation rates
(maximum short term use)
48kg = 1,9kg/hr
19Kg = 0,92kg/hr
9kg = 0,46kg/hr - Minimum cylinder size = 19kg
- Minimum regulator size = 4kg/hr
- Minimum ID pipe size
12mm = less than 8 meters
16mm = between 8-25 meters
